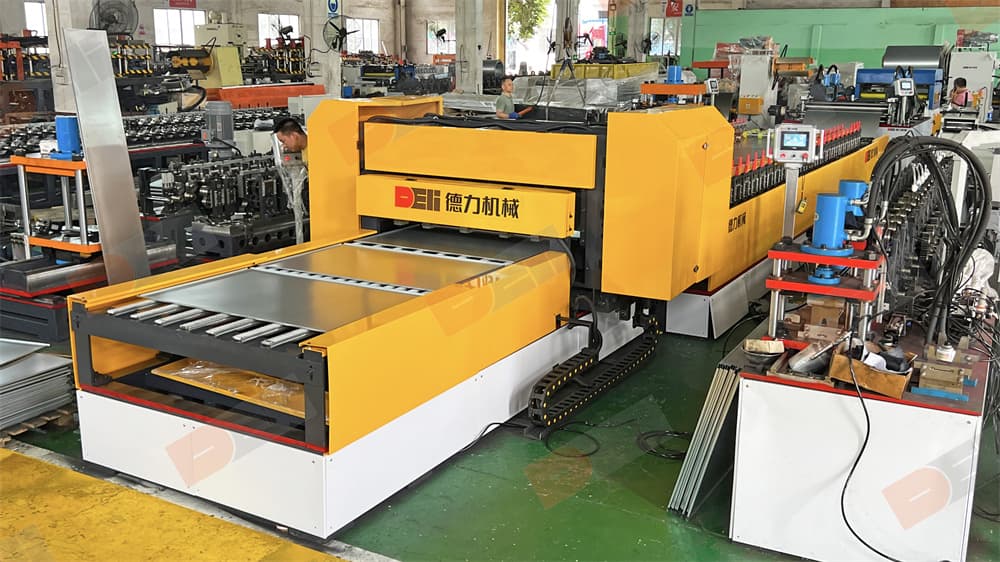

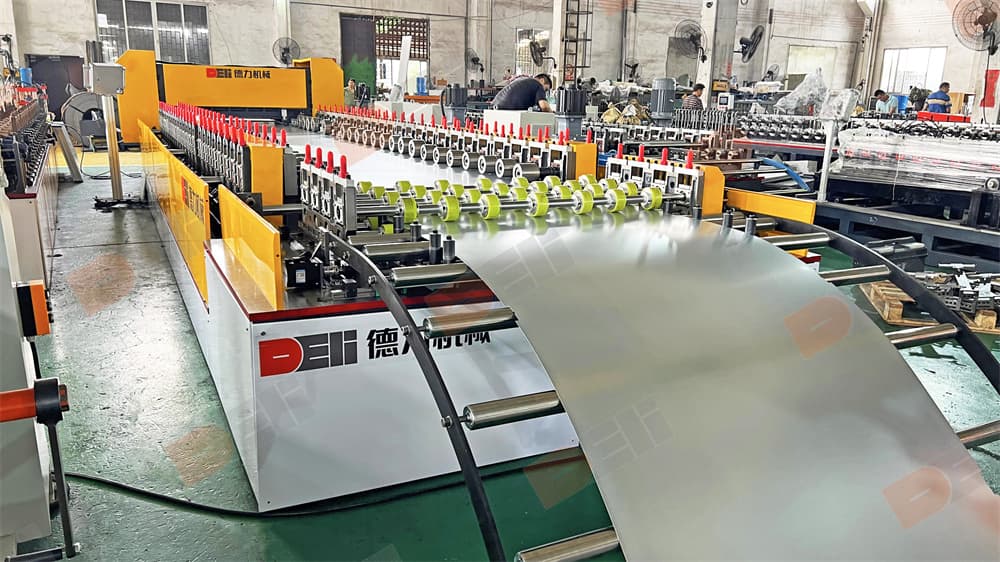

Metal Wall Panel Production Line
Our Metal Wall Panel Production Line is designed for the high-speed, fully automatic production of large-format architectural metal wall panels for commercial buildings, subway stations, transportation hubs, shopping malls and other large public facilities.

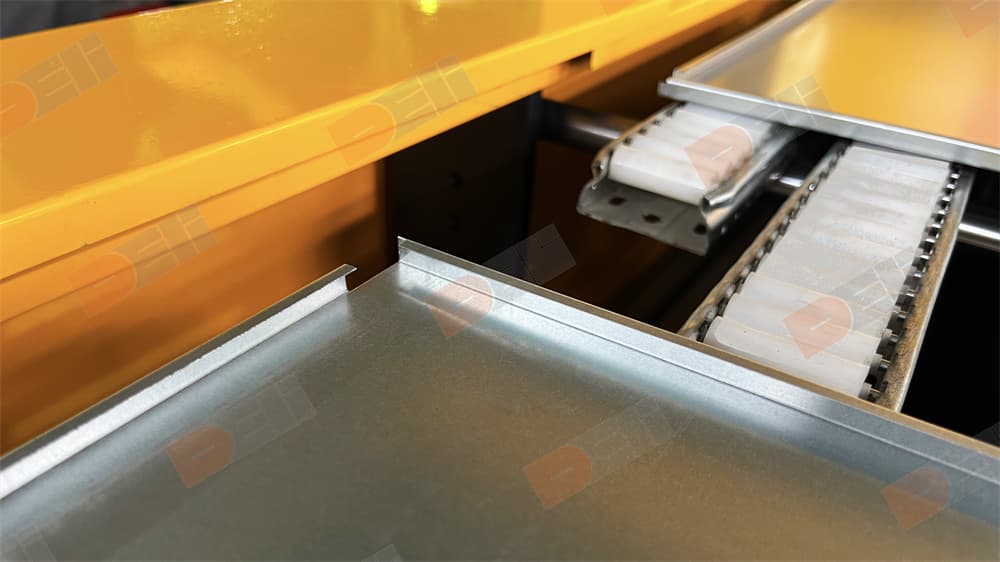

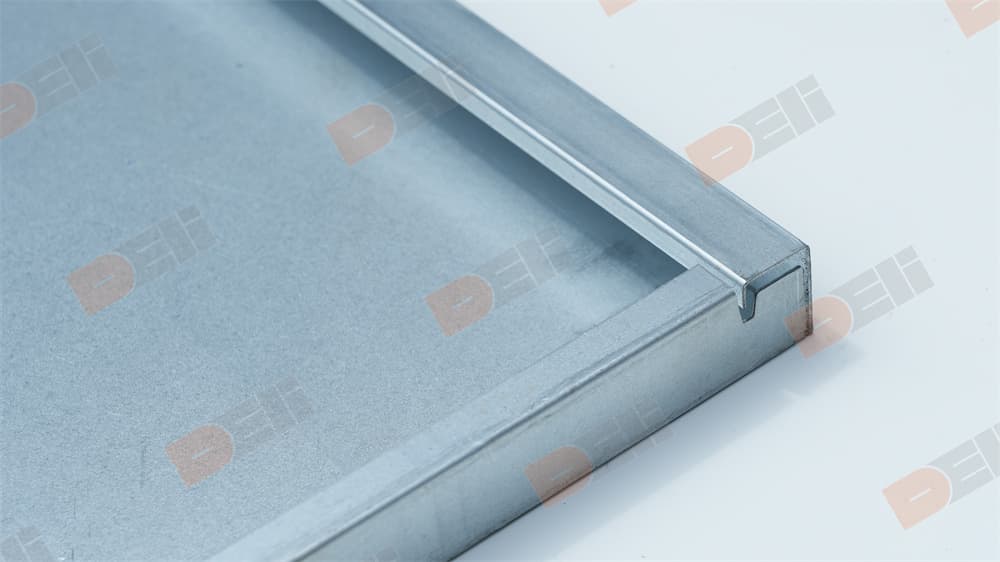

The production line combines roll forming and servo-driven CNC bending technology to manufacture complex metal wall panel profiles with high precision and consistent quality. The left and right sides of the panel are formed by roll forming, while the front and rear sections are processed by servo-driven CNC bending units.
The CNC bending system can perform 1 to 3 bending operations, with the bending sequence and position freely programmable according to different panel designs.
The production line is designed for 1.0 mm metal sheet, approximately 0.0394 inch / 20 gauge, and supports adjustable panel dimensions. The panel width, length and profile height can be adjusted according to different project requirements.
Key Features
- Fully Automatic Production – Automatic forming, bending and panel processing for efficient production.
- Roll Forming + CNC Bending – Roll forming is used for the left and right profiles, while servo-driven CNC bending creates the front and rear sections.
- 1–3 Programmable Bending Operations – The servo CNC bending system allows 1, 2 or 3 bending operations according to the required panel geometry.
- Adjustable Panel Width – Panel width can be customized for different architectural designs.
- Adjustable Panel Length – Production length can be freely programmed according to project requirements.
- Adjustable Profile Height – The panel profile height can also be adjusted for different applications.
- High Precision Servo Control – Servo-driven bending provides accurate positioning and repeatable panel dimensions.
- Fast Production – Automated forming and bending significantly improve production efficiency.
- Strong and Durable Panels – 1.0 mm metal panels provide excellent structural strength and durability.
- Fire-Resistant Construction – Metal wall panels provide reliable fire-resistant characteristics for demanding architectural applications.
- Fast Installation – The engineered panel design allows quick and efficient installation on site.
Designed for Large-Format Architectural Metal Wall Panels
This production line is particularly suitable for manufacturing large-format architectural metal wall panels used in high-traffic and large-scale public buildings.
Typical applications include:
- Shopping malls
- Subway stations
- Railway stations
- Airports
- Transportation hubs
- Commercial buildings
- Public buildings
- Exhibition centers
- Large interior architectural projects
Compared with conventional wall finishing systems, metal wall panels offer a combination of high strength, durability, fire resistance and fast installation, making them suitable for modern commercial and public architecture.
Flexible Panel Dimensions
One of the main advantages of this production line is its flexible dimensional adjustment.
The machine can adjust:
Panel Width: Adjustable according to the required wall system
Panel Length: Programmable for different project requirements
Profile Height: Adjustable according to the panel design
Bending Operations: 1–3 times, freely programmable
This flexibility allows one production line to manufacture different panel specifications without requiring a completely new machine for every panel size.
Why Choose Our Metal Wall Panel Production Line?
Our Metal Wall Panel Production Line integrates forming and CNC bending into one automated production system, providing a flexible solution for manufacturers producing architectural metal wall systems.
With adjustable panel dimensions, programmable 1–3 stage CNC bending and servo-driven positioning, the machine can produce a wide range of large-format metal wall panels while maintaining high dimensional accuracy and consistent production quality.
It is an ideal solution for manufacturers serving the commercial construction, transportation infrastructure and large public building markets.
Production Process

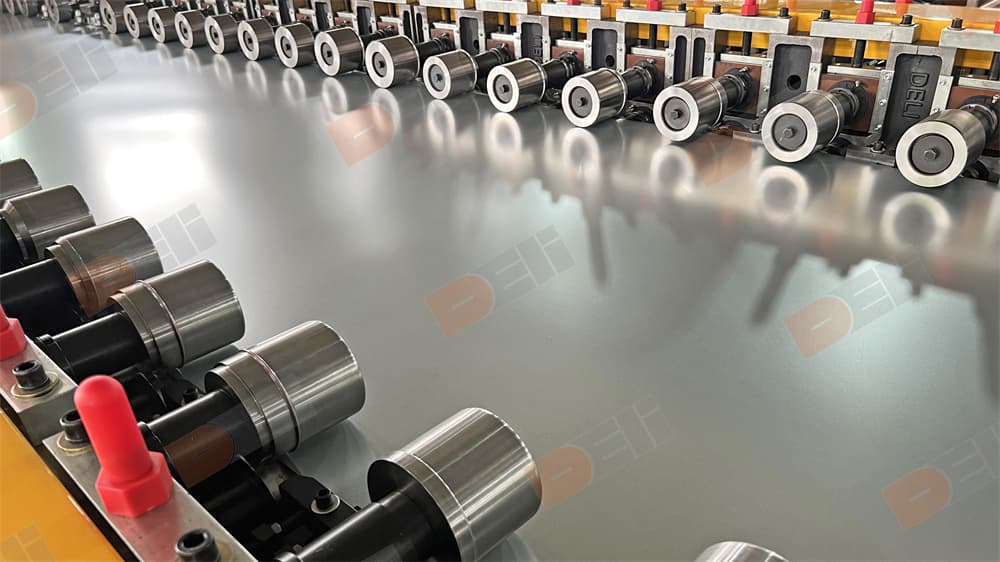

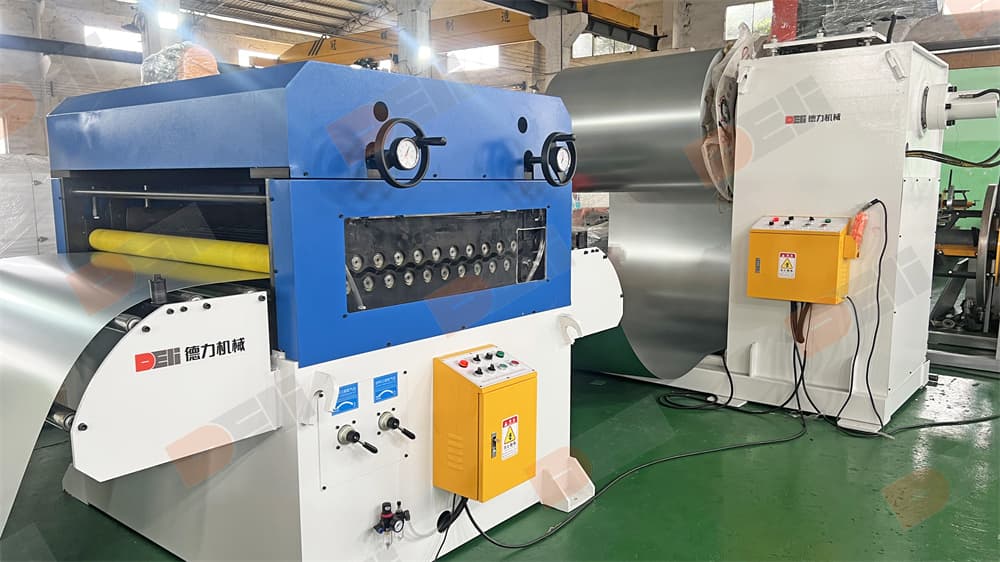

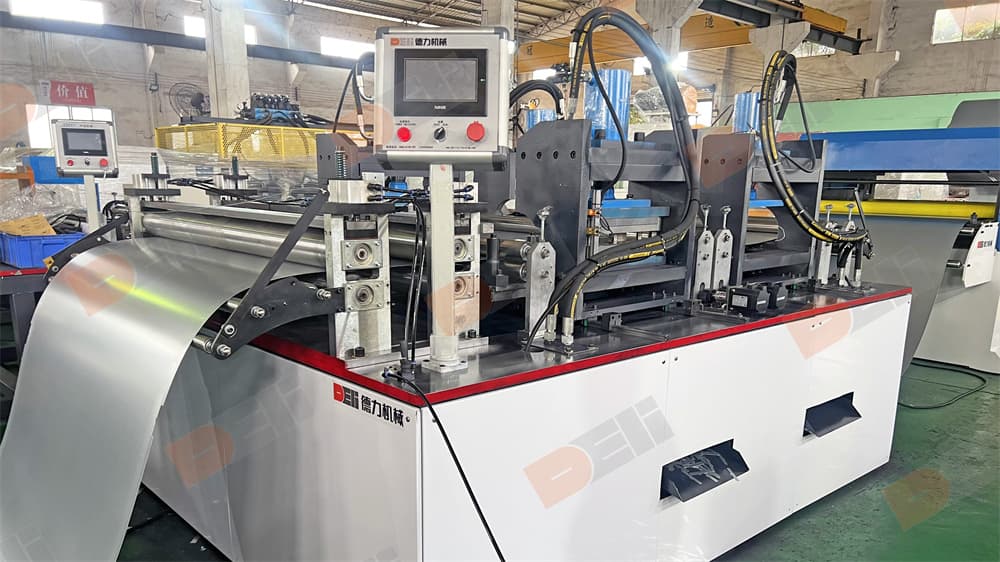

Decoiling — Leveling — Pre-Punching — Roll Forming — Cutting — Front and Back Servo Bending
