Automatic aluminum honeycomb ceiling panel production line for ceiling and wall panels.

Integrated roll forming, CNC bending, glue coating, honeycomb core assembling and panel pressing system with high efficiency and stable quality.

Machine Patent No. 2022233069243

Features

Our aluminum honeycomb panel production line is designed for manufacturing high-quality aluminum honeycomb sandwich panels widely used for ceiling systems, interior wall panels, partitions, and architectural decoration applications.

The complete production line integrates panel forming, automatic glue coating, honeycomb core assembly, and panel laminating processes, achieving efficient and stable production with reduced manual operation.

The aluminum sandwich panel is manufactured by combining aluminum face sheets with an aluminum honeycomb core, providing excellent properties including fire resistance, moisture resistance, corrosion resistance, insect resistance, lightweight structure, and sound absorption performance.

The production line adopts a combination of roll forming technology and CNC bending technology. Two independent forming machines are used to produce the upper and lower aluminum panels. The left and right profiles are automatically formed by roll forming units, while the front and rear edges are processed by CNC bending systems to ensure accurate dimensions and consistent panel quality.

After forming, the panels are automatically coated with adhesive, followed by manual honeycomb core placement, automatic panel assembly, and final discharge. The finished panels require approximately 8 hours of cold pressing to ensure complete adhesive curing and strong bonding performance.

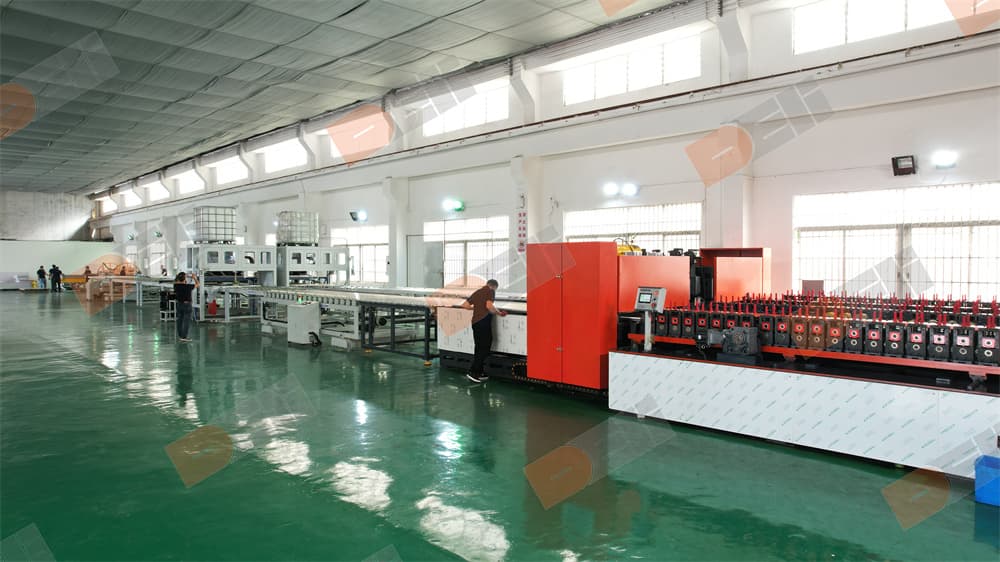

Automatic Production Process

The complete line combines forming, glue coating, assembly, and discharge processes, reducing labor requirements and improving production efficiency.

High Precision Aluminum Panel Forming

Using roll forming and CNC bending technology, the machine produces accurate aluminum panels with stable dimensions and excellent appearance.

Multi-Application Production

The aluminum honeycomb panel produced by this line can be used for:

• Aluminum honeycomb ceiling panels
• Interior wall panels
• Partition panels
• Architectural decoration panels
• Sound insulation panels

Excellent Panel Performance

The finished aluminum honeycomb sandwich panel offers:

• Fire resistance
• Moisture resistance
• Corrosion resistance
• Insect resistance
• Lightweight structure
• High strength
• Sound absorption performance

Customized Panel Dimensions

Panel width, length, and profile dimensions can be customized according to customer requirements.

Technical Advantages

• Fully integrated production line
• Stable panel quality
• Reduced manual operation
• High forming accuracy
• Suitable for large-scale production
• Compatible with different aluminum panel designs

Production Process

   Decoiling — Leveling — Pre-Punching — Roll Forming — Auto Bending — Discharge

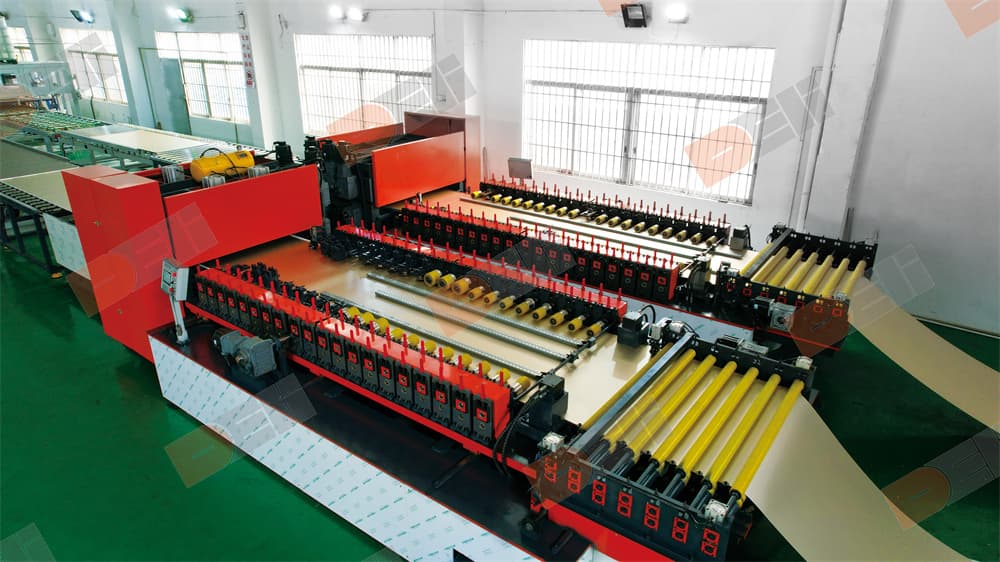

1. Aluminum Panel Forming System

The production line includes two forming machines for manufacturing the upper and lower aluminum sheets.

• Automatic material feeding
• Roll forming for side profile shaping
• CNC bending for front and rear edge forming
• Adjustable panel dimensions
• High forming accuracy and repeatability

The combination of roll forming and CNC bending ensures a precise panel structure suitable for ceiling and wall applications.

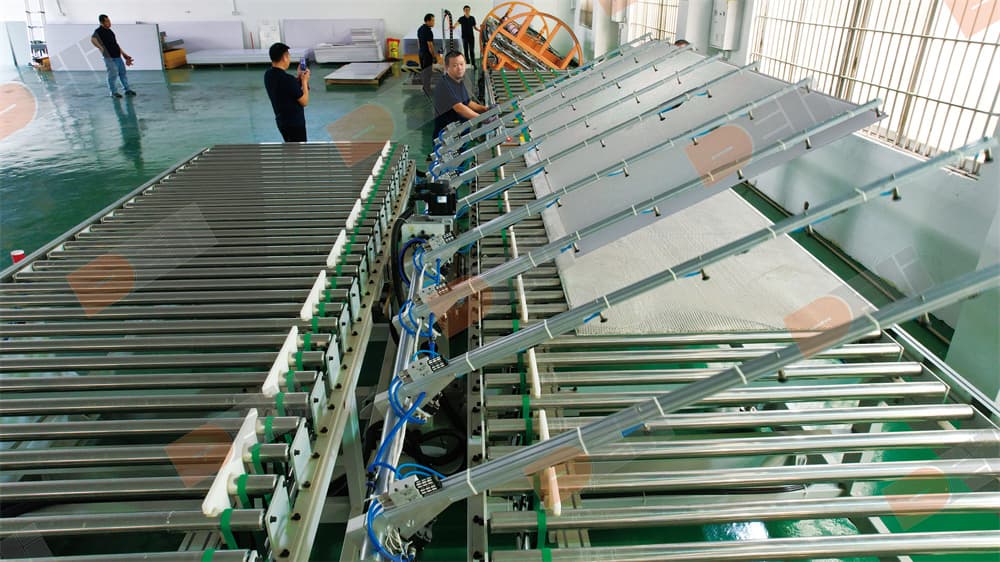

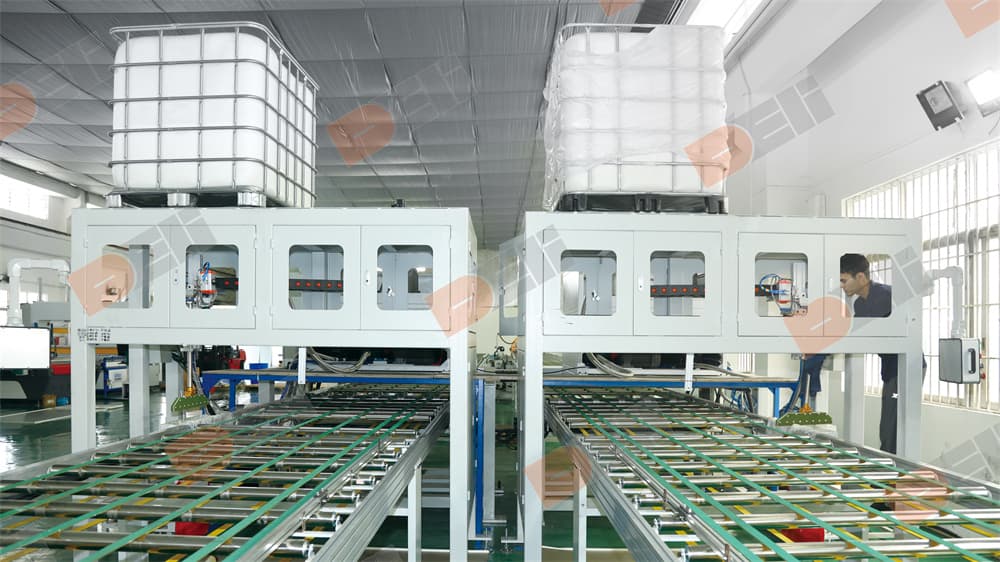

2. Automatic Glue Coating System

After forming, the aluminum panels are transferred to the automatic gluing section.

Features:

• Uniform adhesive coating
• Adjustable glue quantity
• Stable bonding quality
• Improved production efficiency

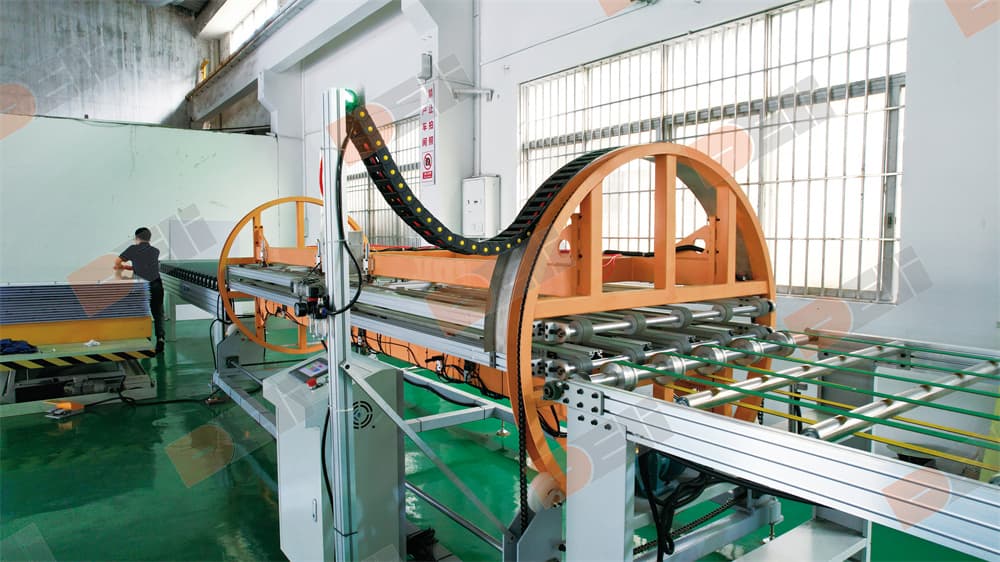

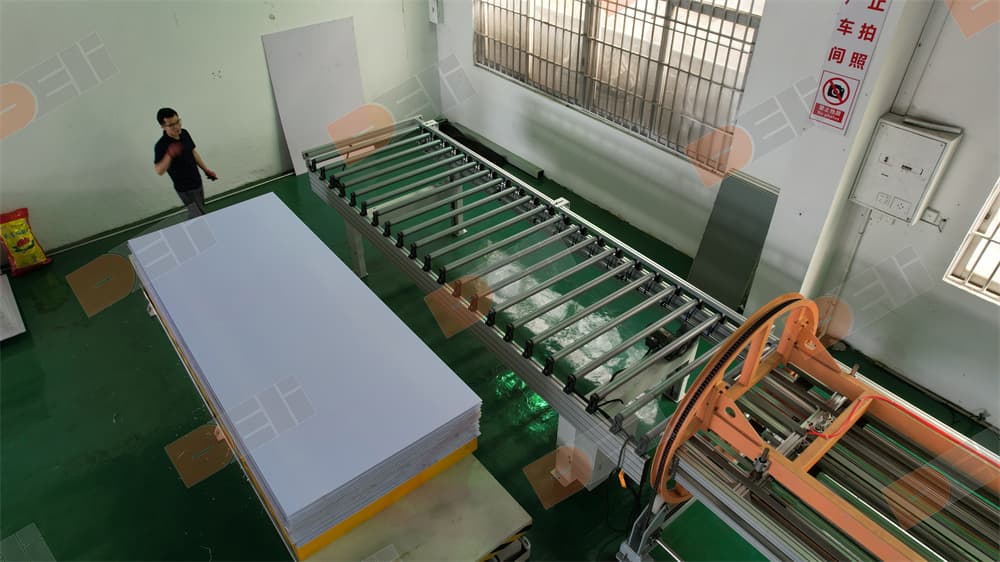

3. Honeycomb Core Assembly & Panel Lamination

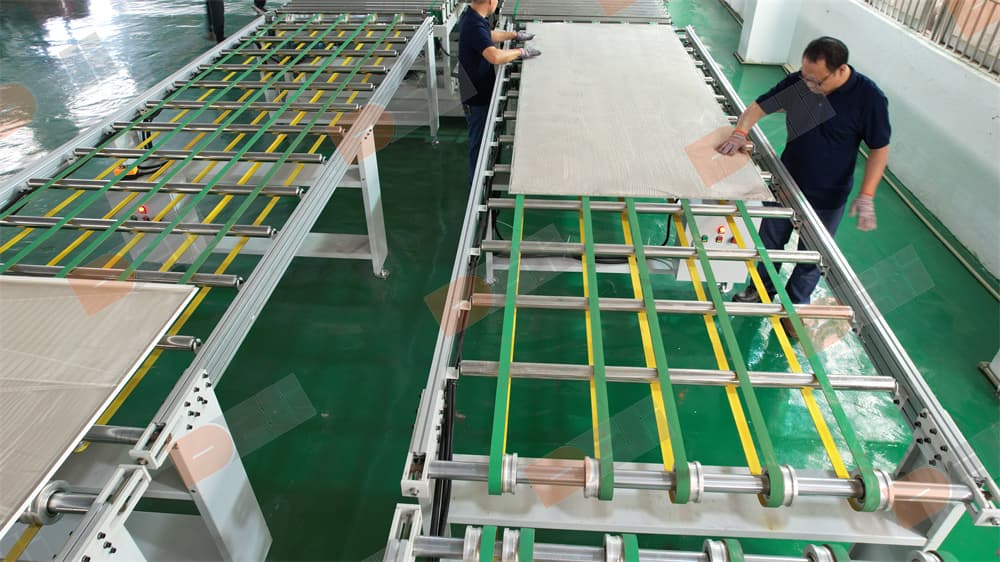

The honeycomb core is manually positioned between the aluminum panels.

The system then automatically completes:

• Panel alignment
• Sandwich assembly
• Material pressing
• Finished panel discharge

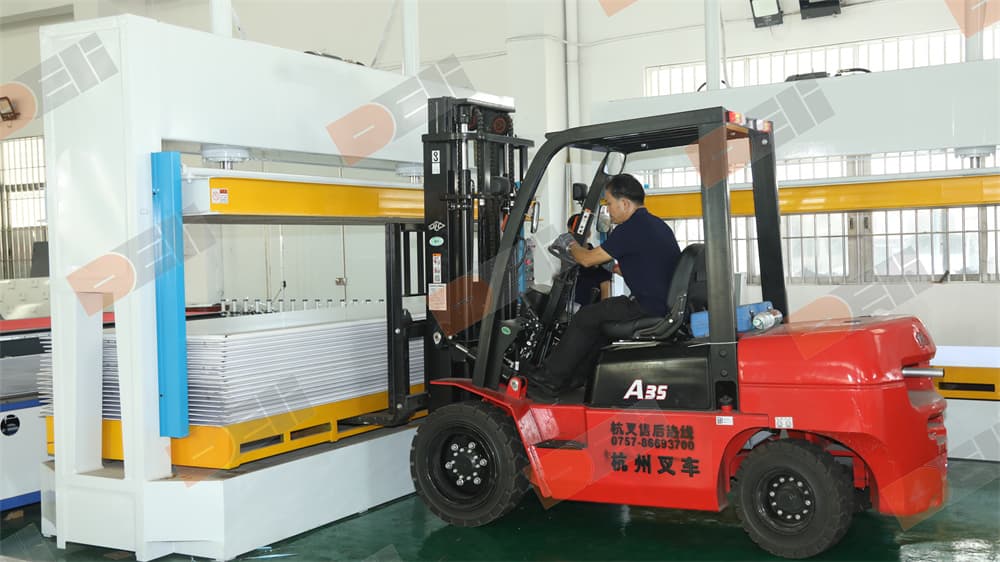

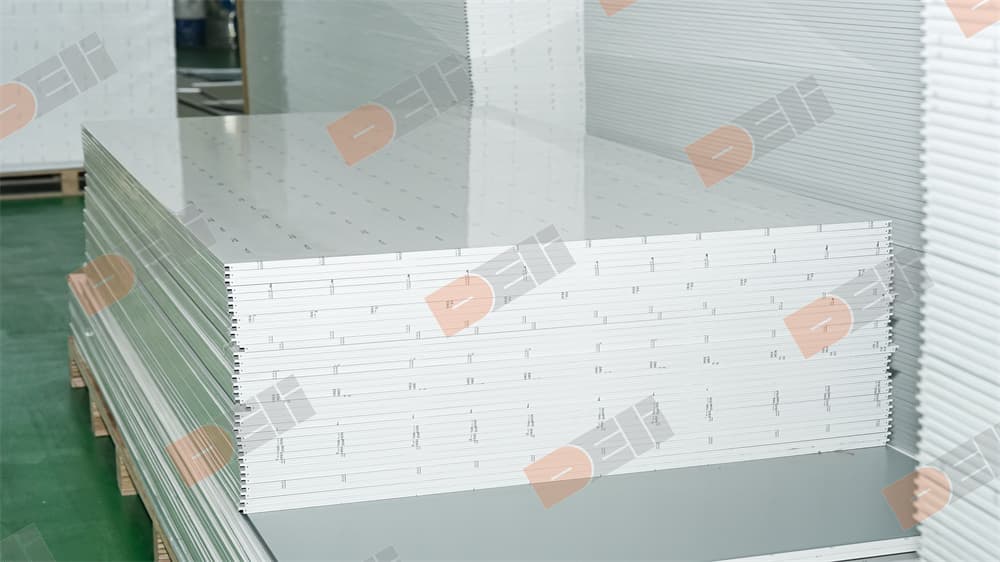

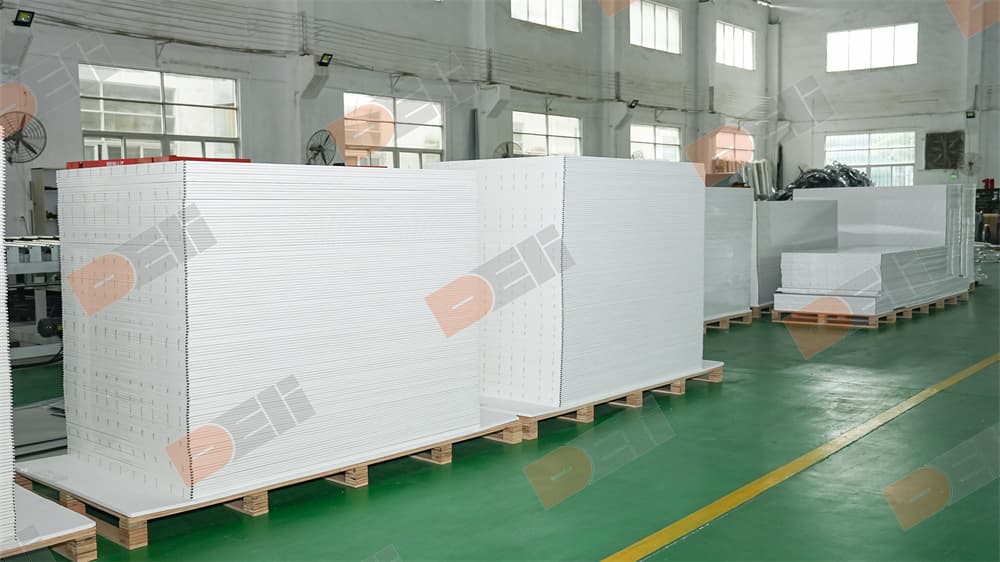

After assembly, the panels require cold pressing for approximately 8 hours until the adhesive is fully cured.

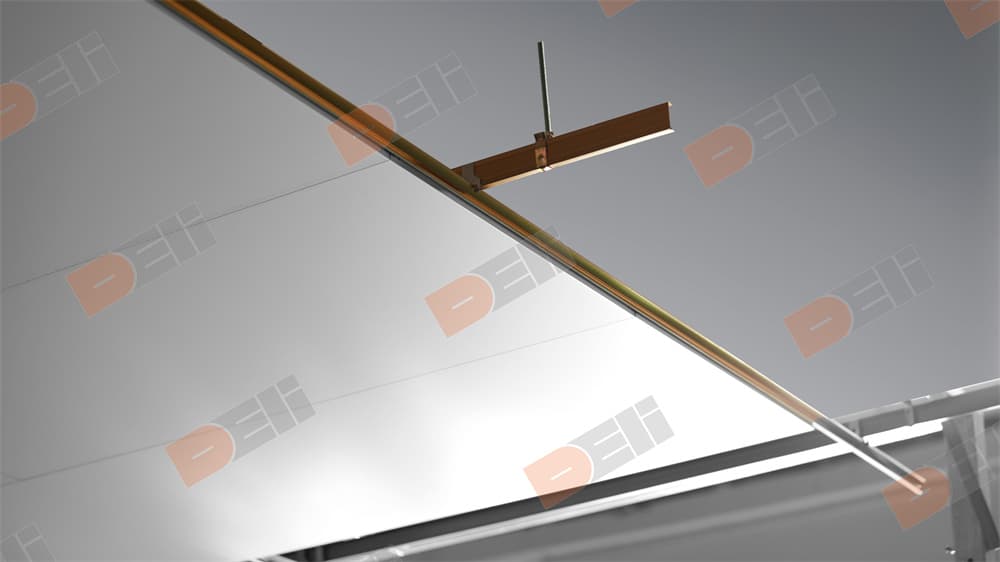

Ceiling Installation

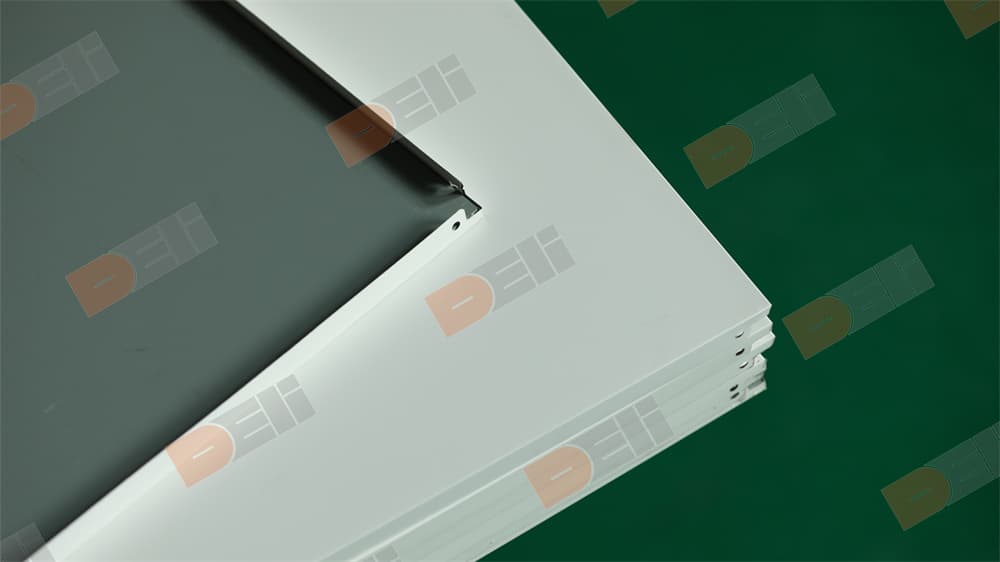

Production Accuracy

Diagonal Tolerance: ±0.2mm ≤ 1000mm

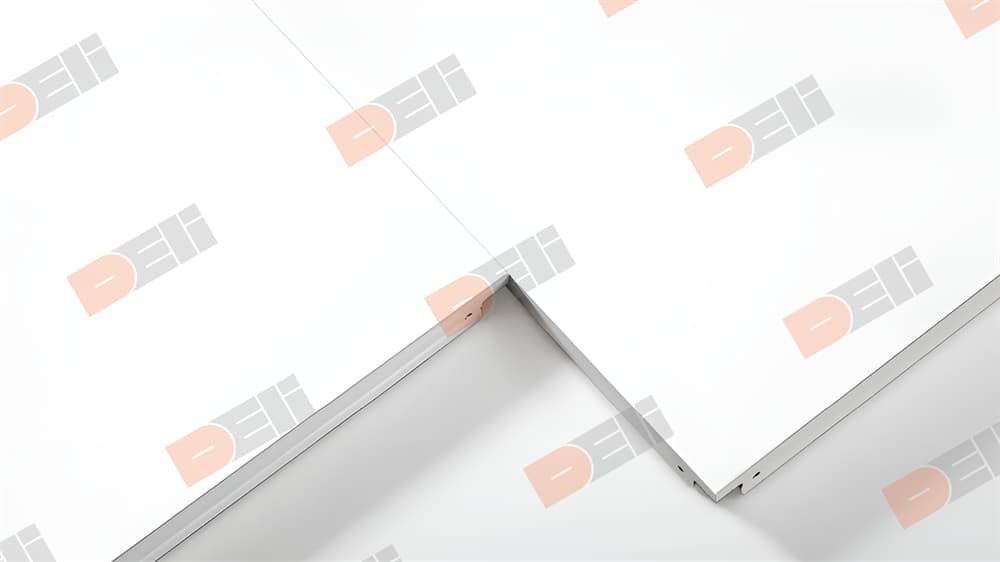

Perfect assembly of honeycomb ceiling tiles to avoid any toothpick hole.

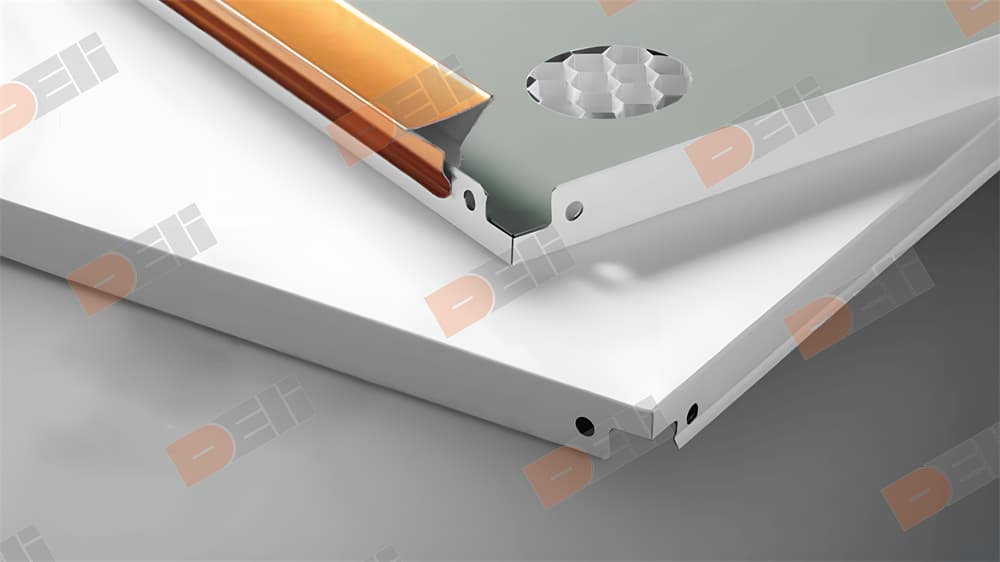

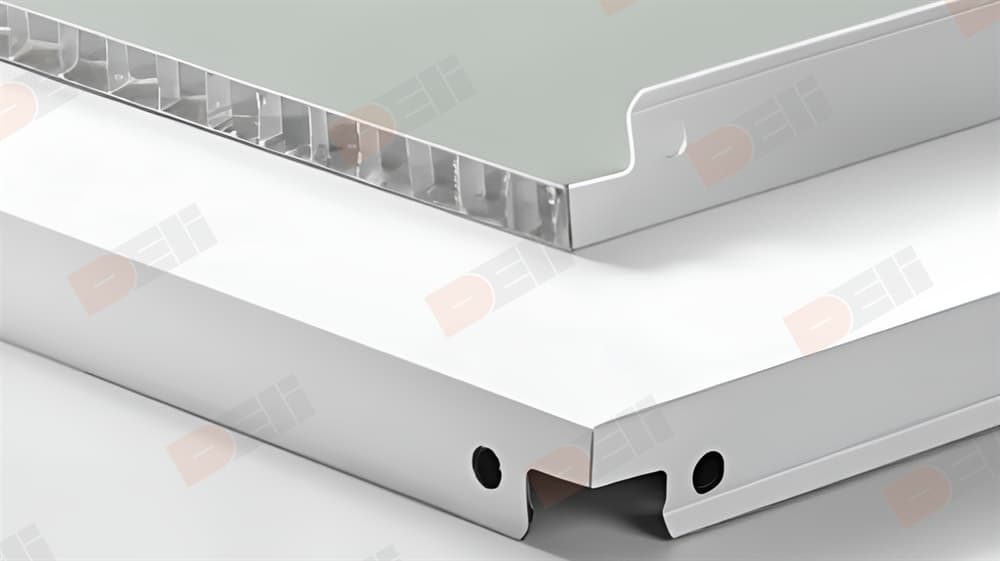

Ceiling Tile
