Product Description
Application

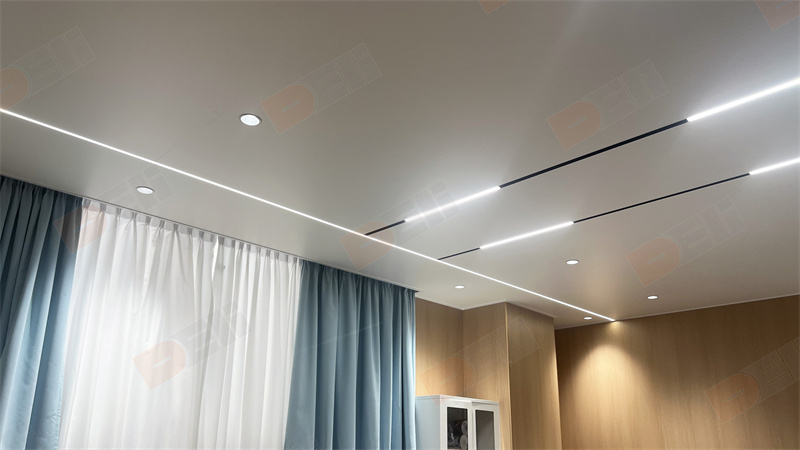

Interior Deocration

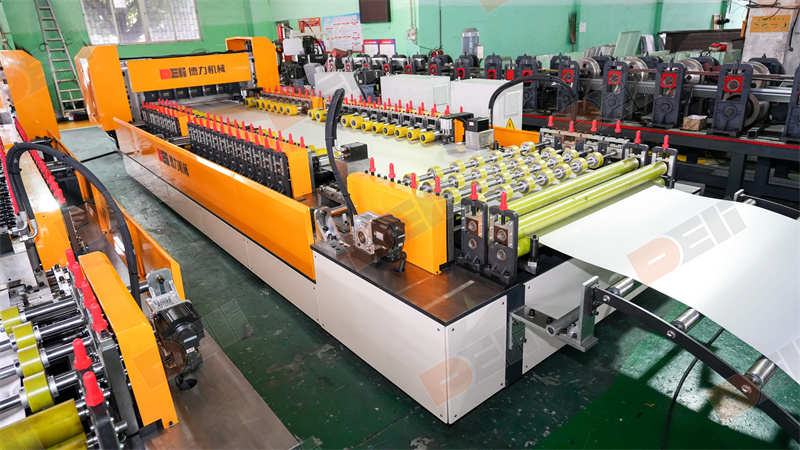

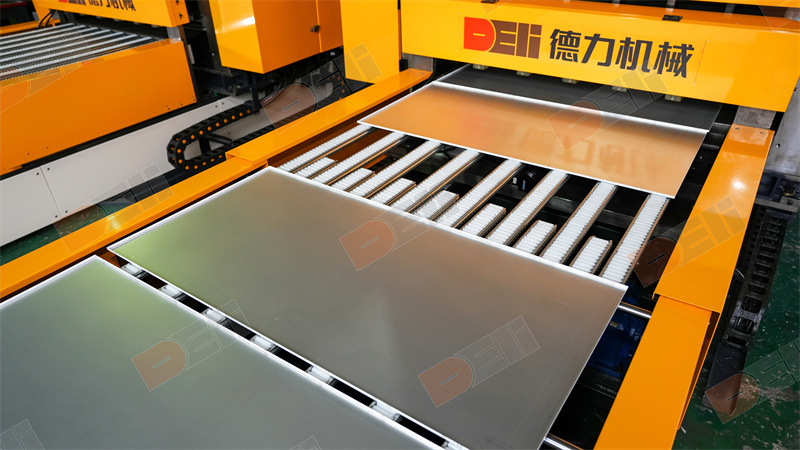

Suspended Honeycomb Ceiling Panel Tiles Production Line
Sandwich ceiling panel production line
The new treding Honeycomb Ceiling Panel Production Line caters to architects, contractors, and manufacturers in the construction industry, providing high-quality honeycomb ceiling panels for use in commercial buildings, residential spaces, hospitality venues, and other architectural projects. Honeycomb panels are popular for their lightweight nature, acoustic properties, and modern aesthetic appeal.
Features
1. Sizes adjustable, can produce different sizes of ceiling tiles
2. Easy and quick operation — profile width and length adjustable by CNC control.
3. Proceed for thin aluminum material — face and bottom sheets are 0.2mm

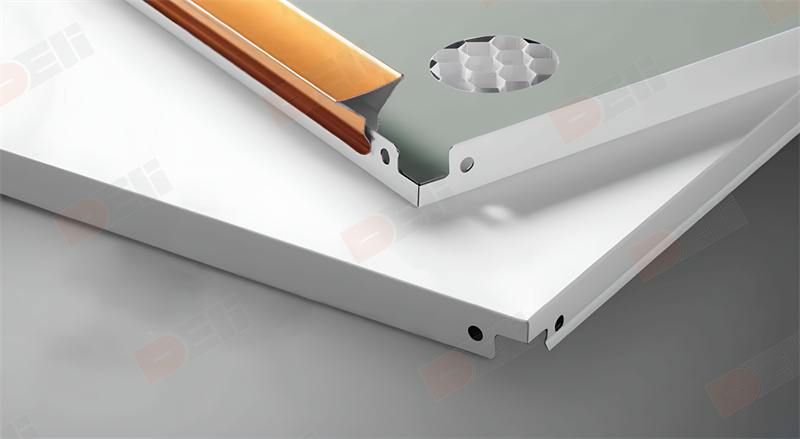

4. High precision of finished ceiling, frameless assembly of flexible sizes.

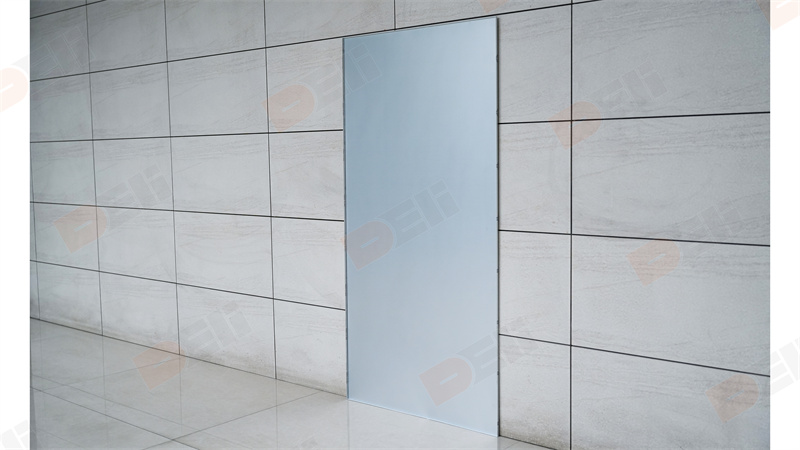

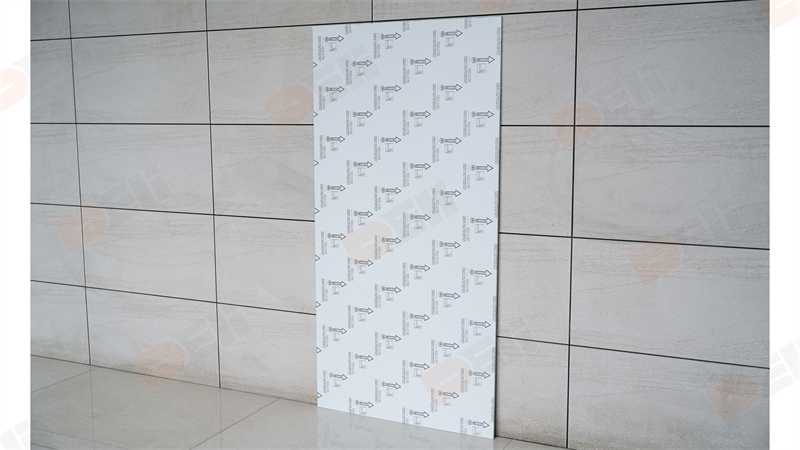

5. Great accuracy of finished products, no scratches nor cracks. Lightweight, strong loading capacity and durable, widely used as ceiling tiles or wall panels.
Production Process
Face and Bottome Sheet Forming:

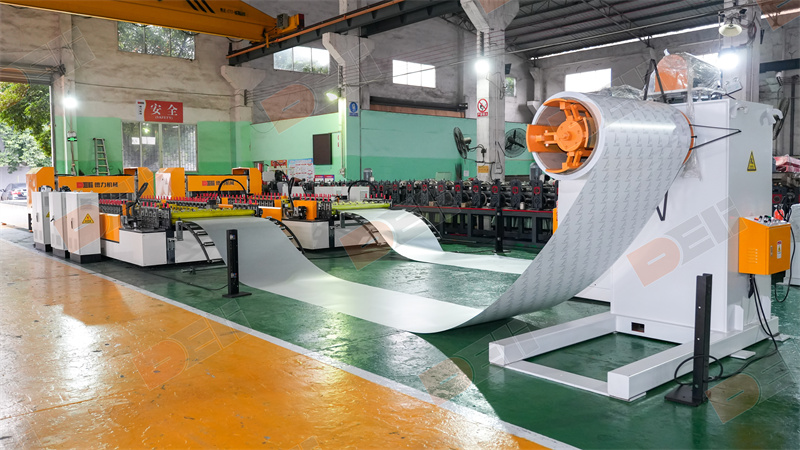

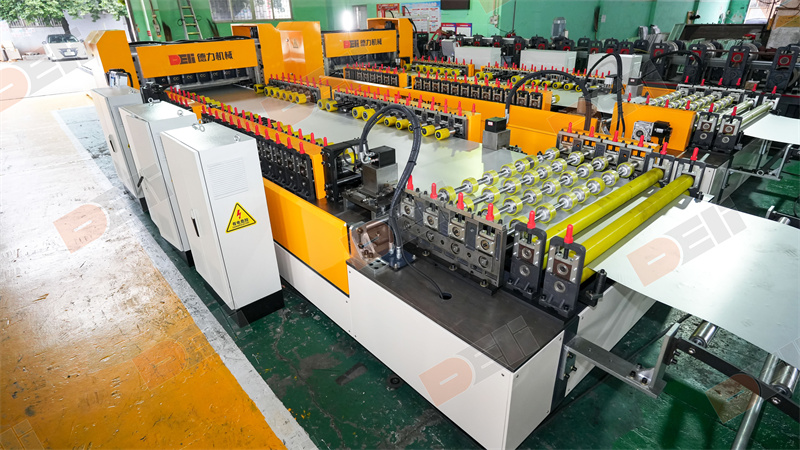

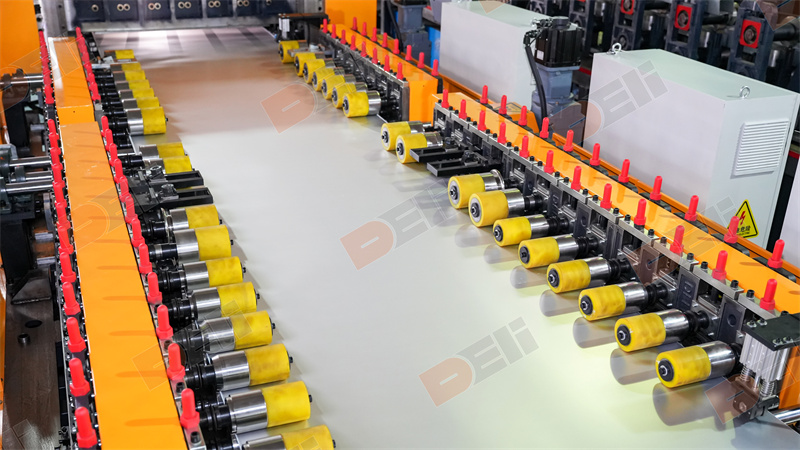

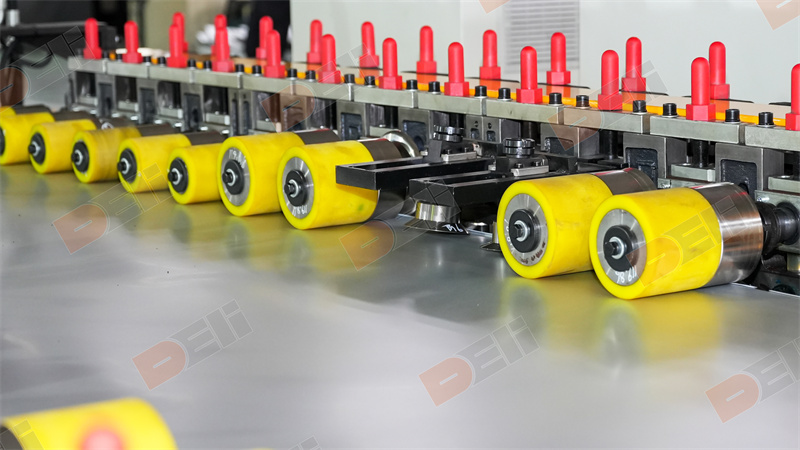

Decoiling — Leveling — Pre-Punching — Roll Forming — CNC Cutting and Bending — Run-out

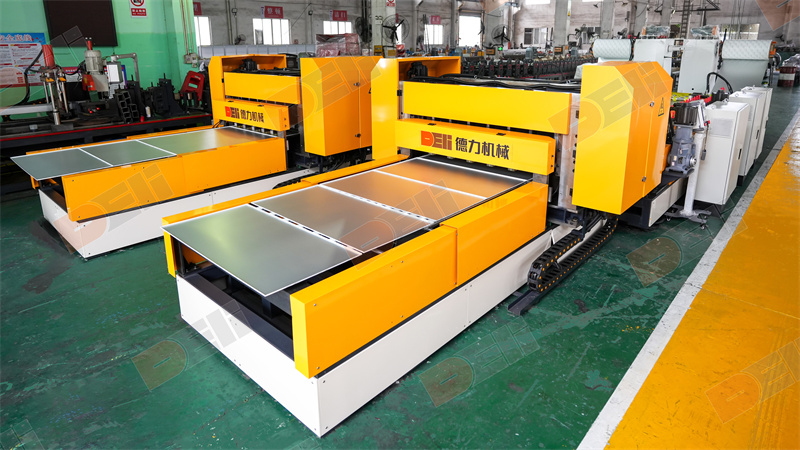

Auto Assembly:

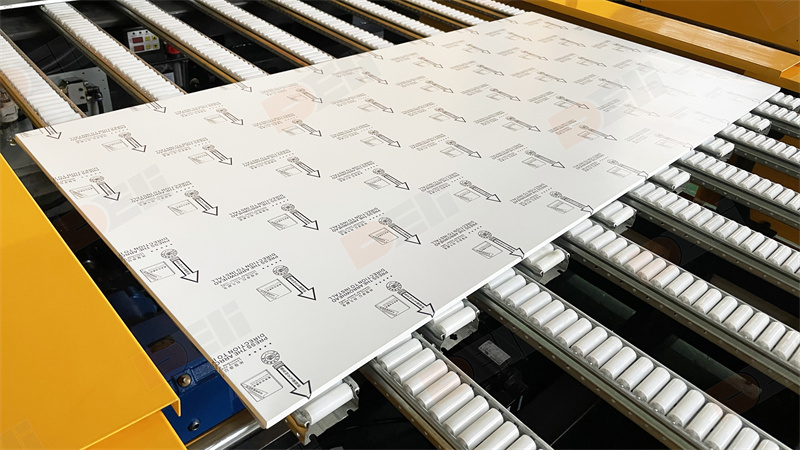

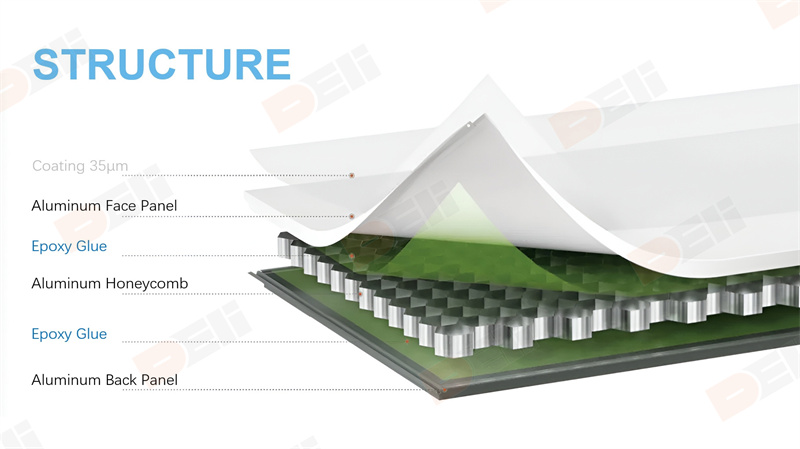

Auto Glue Applicator — Manual Honeycomb Mesh Apply — Auto Assemble — Stacker — Cold Press for 8h

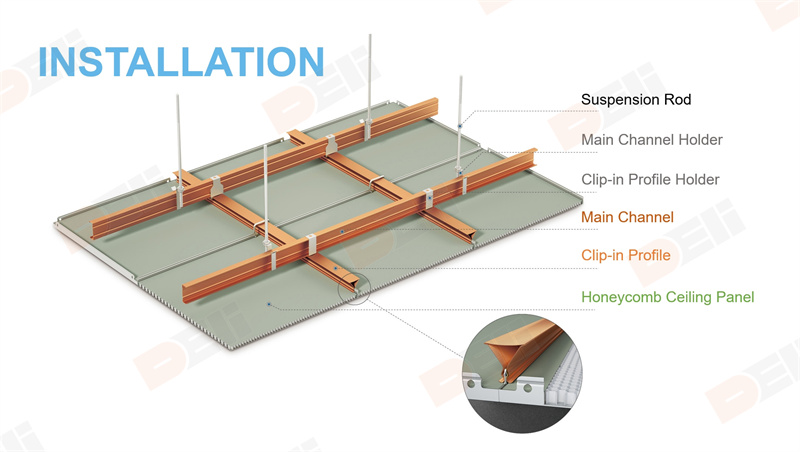

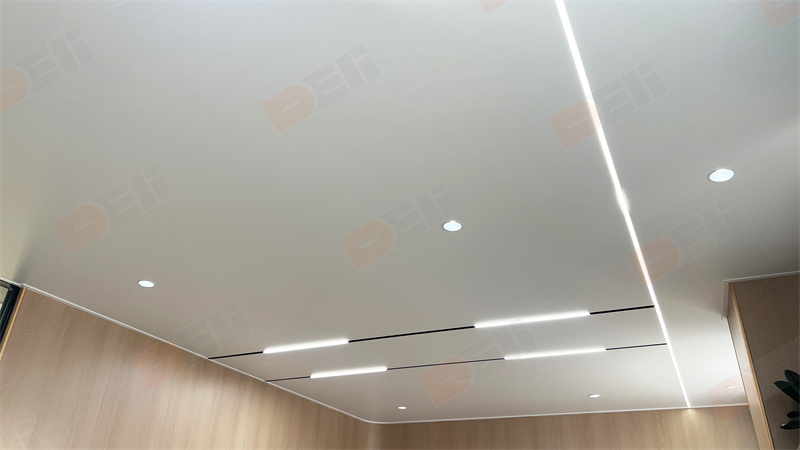

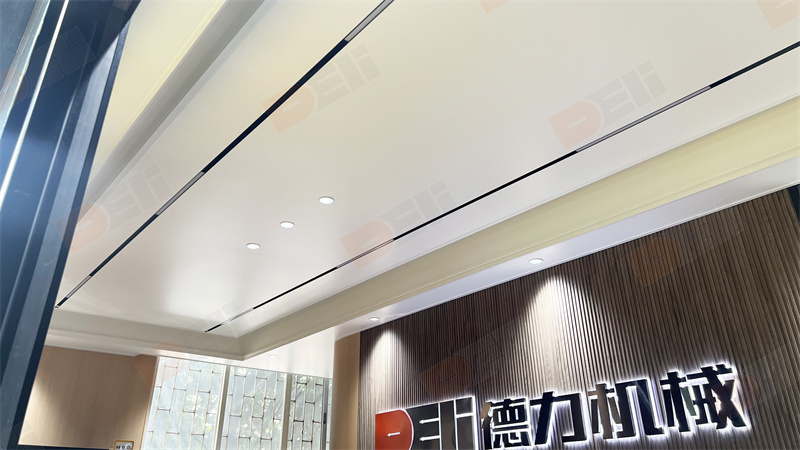

Ceiling Installation

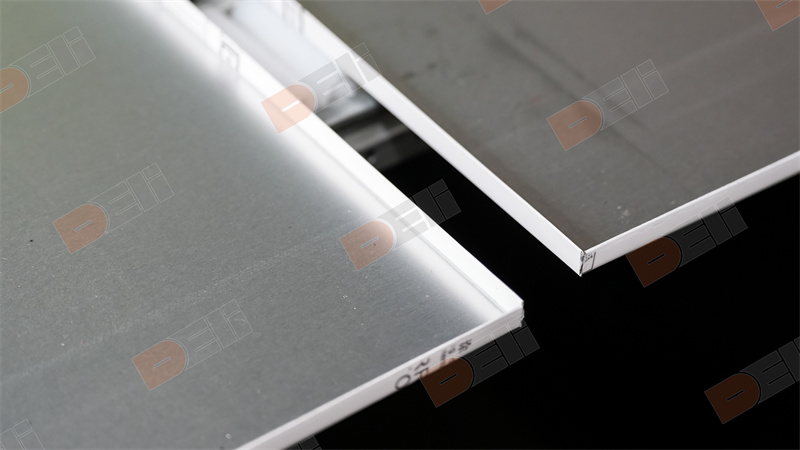

Production Accuracy
Diagonal Tolerance: ±0.2mm ≤ 1000mm
Perfect assembly of honeycomb ceiling tiles to avoid any toothpick hole.
